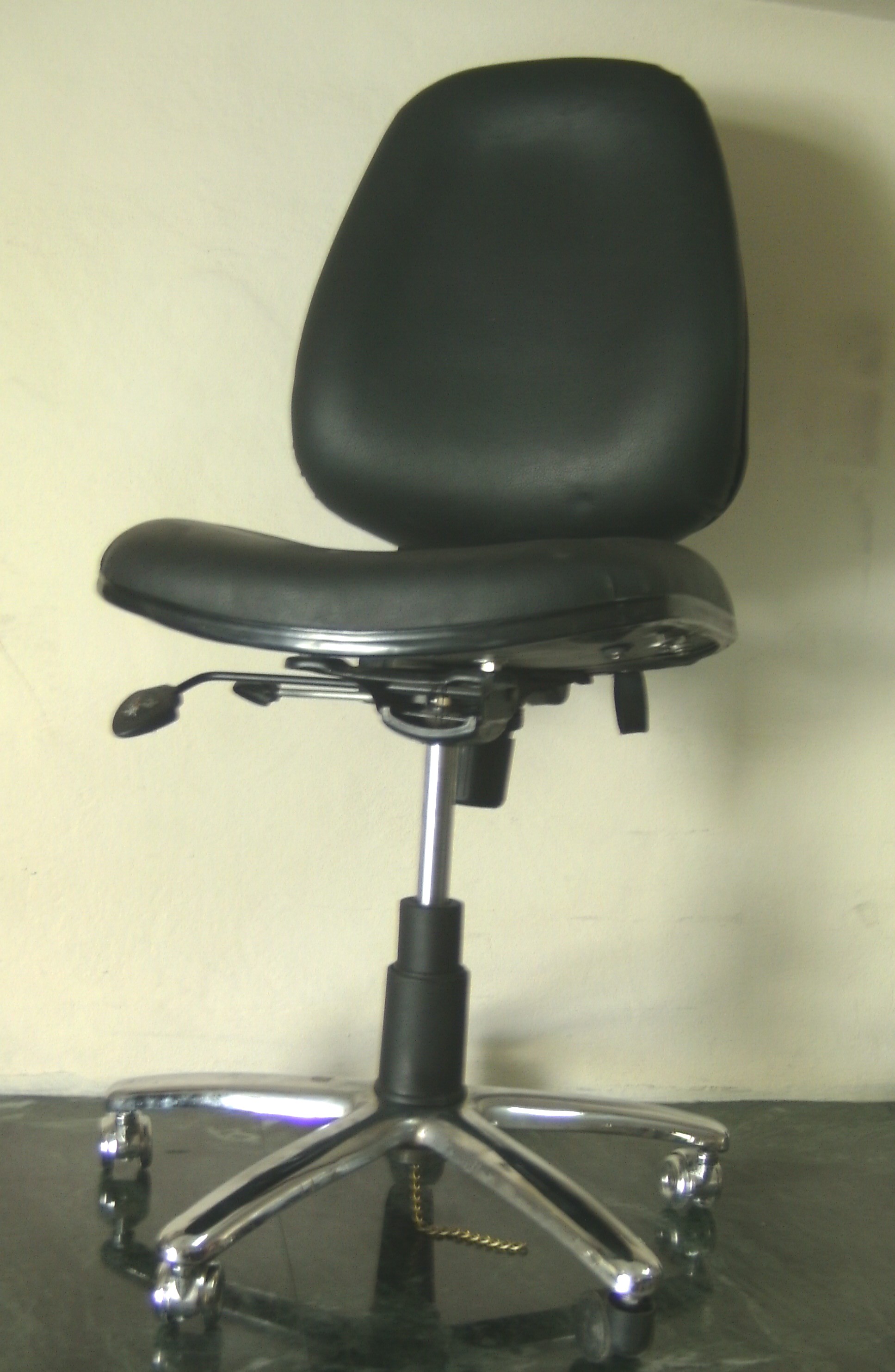

Antistatic Chair Without Arms AV033



Soldering Iron Sponge



Technical Specification of Antistatic Chair Without Arms

ESD safe chair is essentially designed for discharging the accumulated electrical charges for the operator during critical electronic assembly.


  1. Height Adjustable
  2. Without Arms
    Seat Size 18” x 18”
    Back Rest Size 17” x 19”
    Seat height from the floor min 19”
    Seat height from the floor max 24”
    Height of the Handle Adjustable maximum 12”
    Height of the Handle Adjustable minimum 9”
  3. Seat and backrest upholstered with ESD PVC leather which is low in maintenance and clean
  4. Colour of seat and backrest – black
  5. Seat type : Smooth revolving
  6. Cushion : 2” seat and backrest
  7. Structure of chair : Tubular M.S. with chrome plating
  8. Chair base : Chrome plated 5 stars M.S.Base with 1 ESD Castor & 4 Normal castors. Drag included in center of base.
  9. Height adjustable seat : Using Hydraulic Mechanism
  10. Tilting back seat : The back can be locked in vertical positioning and can be tilted by unlocking.





Electrical Properties :



1).        Seat & Backrest Surface Point to Point surface resistance : < 107 Ohms
2).        Seat to Castor and Seat to Chair Base Grounding chain resistance : < 107 Ohms



Antistatic Chair : Surface Resistivity of seat & back to the Ground 106 – 108 Ohms. Meets the ANSI ESD S20.20-2007 and EIA 625 Standards
